Description

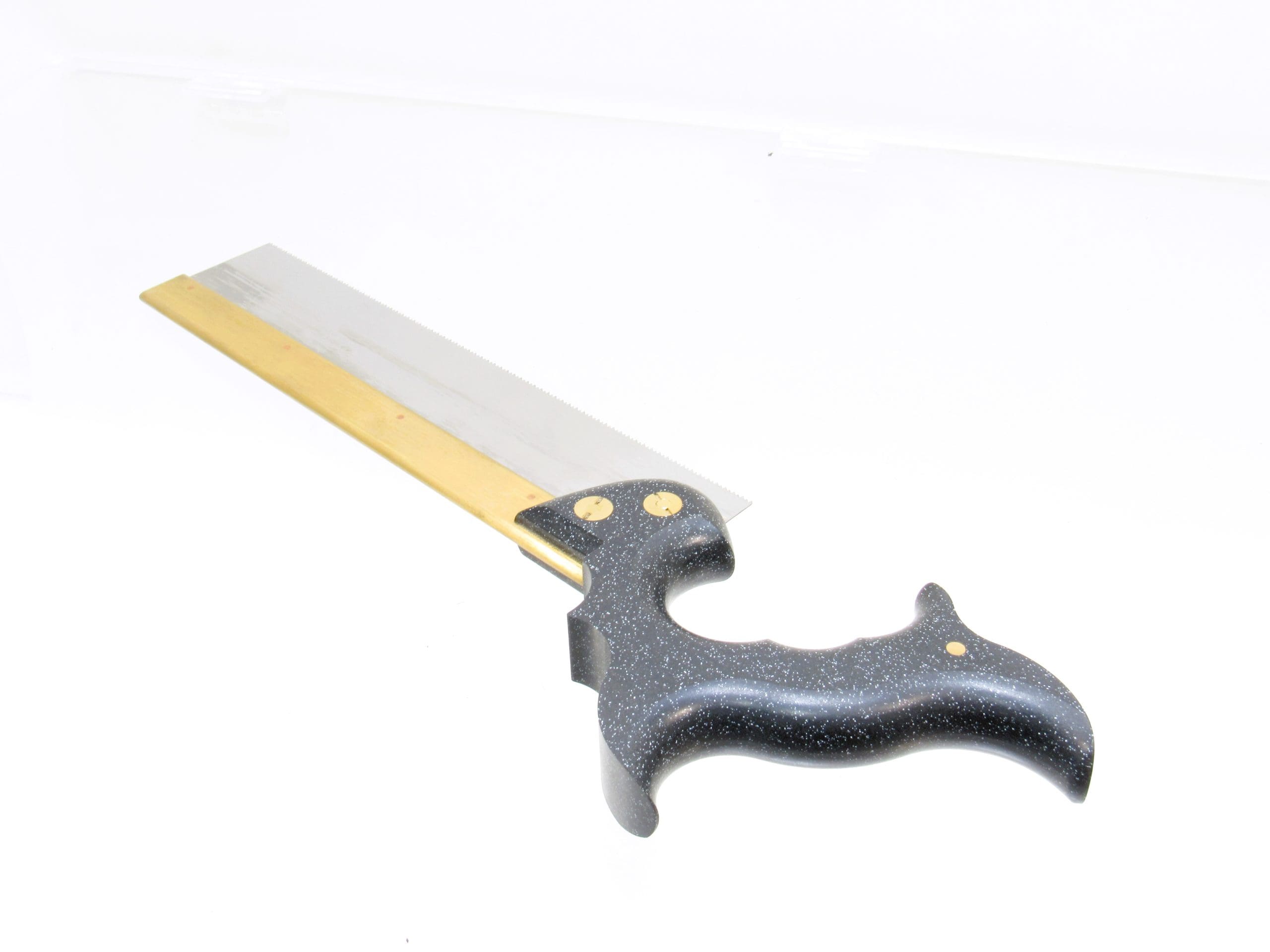

Unused In Box Rob Cosman Dovetail Saw 22-15 TPI 10″ Plate.

Rob makes some of the best saws available.

Free Shipping.

• Size. Overall length (Toe to Handle tip): 15 – 1/8 inches.  Blade length (Toe to heal): 10 inches. Depth of plate under the back: 1 – 5/8 inches.
• Weight: 22-24 ounces.
• Blade. Each of our dovetail saw blades is made from .020 thick, spring steel.
• Tooth Geometry.  Filed rip with a two-stage pitch. The first two inches of each dovetail saw is filed at 22 teeth per inch (TPI) and a 30 degree negative tooth rake, which allows you to easily start a cut. The rest of the blade is filed at 15 tpi and a 0 degree tooth rake allowing you to finish the cut with just a few strokes.
• Set. Unlike most saw manufacturers who stamp out their saw teeth, leaving “dimples” in the blade, we individually cut out each of our saw teeth with a diamond saw.  This allows us to maintain a very slight set of only .002 inch (per side), since we don’t introduce that “dimple” onto the blade.  This slight set produces a narrow .024 inch kerf that eliminates slop allowing the saw blade to accurately track in the saw kerf resulting in dead straight saw cuts with smooth ready-to-glue surfaces.
• Brass Back: Rob Cosman dovetail saws have a 1/4″ thick x 7/8″ wide brass back secured to the blade with peened and flushed copper pins.  Not only does the brass look wonderful but it imparts extra weight to the saw, as compared to other saws, that provides you a better balanced saw, allows the saw to do the cutting work, and helps you “feel” perpendicular.
• Handle. Our unique “pistol grip” handles have memory enhancing carved finger recesses for a perfect and comfortable fit. A pair of brass split nuts secures the handle to the blade and the brass back.  Our standard saw handles are available in Swanstone, a resin-composite material reinforced with glass for durability.
